Scenario

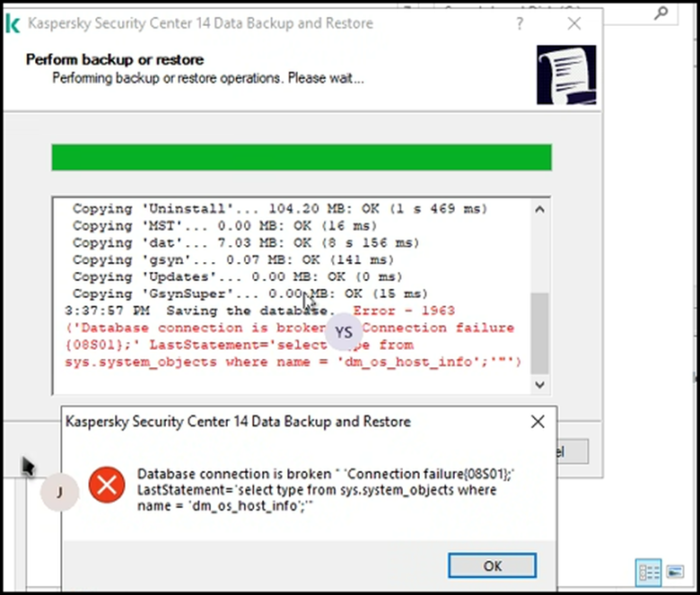

After the deployment of KSC in the environment, the Backup task fails with the following error using the KSC Backup task or klbackup utility (screenshot is below).

All the permissions were correctly assigned on the shared folder, and ports were opened, but still the backup was failing. There were no blocking events in the Firewall traffic logs.

Error -1963 ('Database connection is broken " 'Connection failure{08S01};' LastStataement='select type from sys.system_object where name = 'dsm_os_host_info';'"

Root cause

The issue was identified to be the IPS module of the Firewall (Fortinet/Paloalto) in the environment. When the backup task was initiated, the IPS module was blocking the SQL backup query with "SMB Injection/Attack" signatures.

Solution

Disable the IPS policy on the Firewall for KSC and MS SQL servers and the backup task will be completed successfully.
